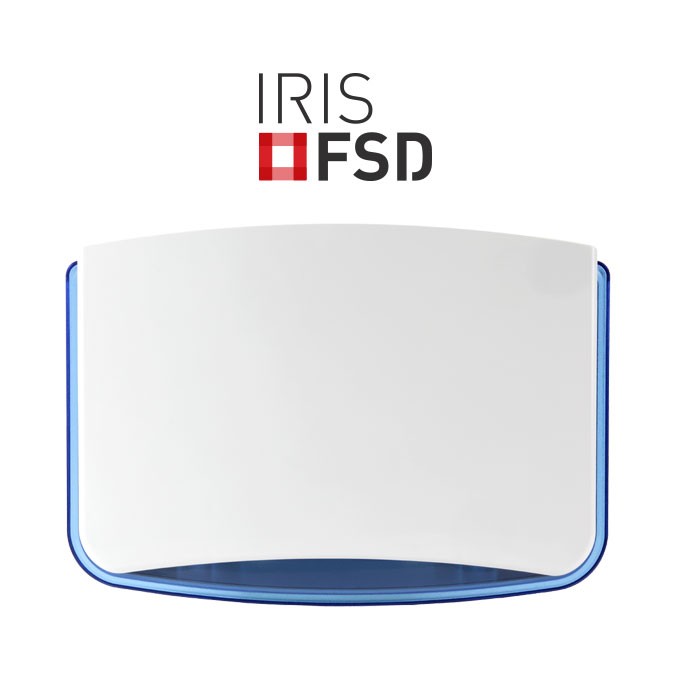

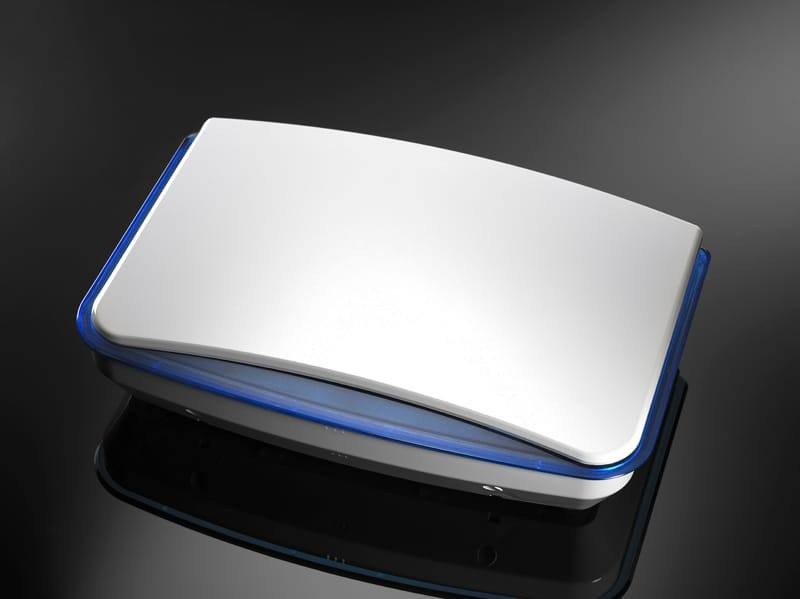

IRIS FSD/B - SIGMA - OUTDOOR SOUNDER GRADE 4
IRIS FSD/B
Autonomous GRADE 4 siren with blue LED flash.
Security policy (edit with module Customer reassurance)
Delivery policy (edit with module Customer reassurance)
Return policy (edit with module Customer reassurance)
Autonomous GRADE 4 siren with blue LED flash.
Acoustic power 122dB at 1m.
Protection against battery short-circuit.
Negative or positive activation input.
The installation of the siren can be completed without being powered by the panel and can remain this way for a long period.
Fire detection input with a distinct sound.
Alarm input with five different sounds, activated by the application or interruption of positive or negative voltage.
Option for low-volume sound at siren start-up, which then rises to normal level.
Ability to limit the siren operation to 5 alarms in a 24-hour period.
Built-in 3-axis accelerometer that triggers the siren in case of tampering or puncturing, as well as if the tilt exceeds 45°.
Foam detector to prevent neutralization of the siren using foam.
TAMPER protection against opening the external enclosure or detaching the siren from the wall.
Built-in FLASH with five high-brightness, low-consumption LEDs, with short-circuit protection.
Seven different FLASH operating modes in standby state.
The FLASH continues to operate for 30 minutes after the alarm ends, allowing easy identification of the triggered area.
LOW BATTERY output, activated if the battery or siren supply voltage drops below 11.5V.
ALARM VERIFICATION output, activated each time the siren sounds, regardless of the trigger reason.
ALARM TAMPER output, activated for every tampering attempt.
SIGNAL input, with selectable visual or acoustic confirmation of panel arming or disarming.
Battery replacement and siren servicing can be performed without triggering the alarm, through a smart, automated process.
Housing with 4 mm thick polycarbonate outer casing.
Metal cover inside the siren for increased security.
All programming is done via buttons located on the siren’s PCB.
Accepts 12V/2.3Ah battery.
Dimensions: 348 x 246 x 69 mm.
