DIONE / ERIS / IRIS

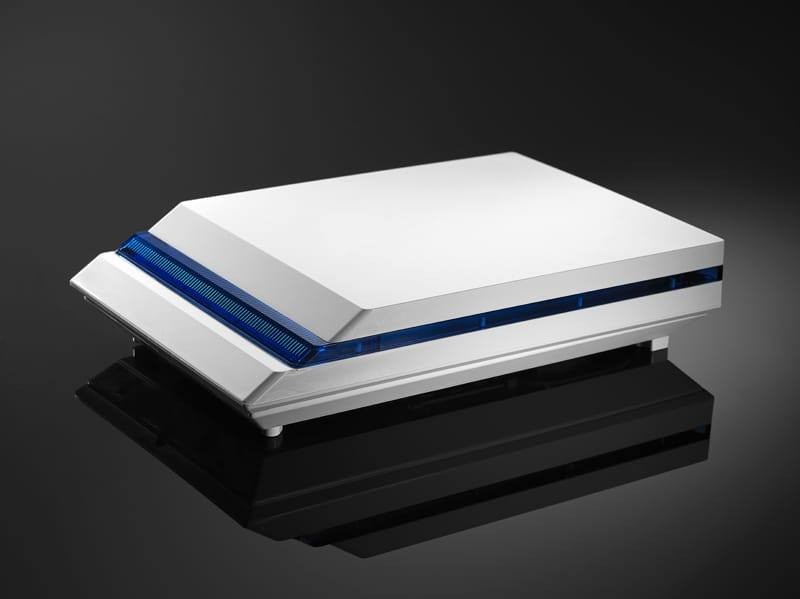

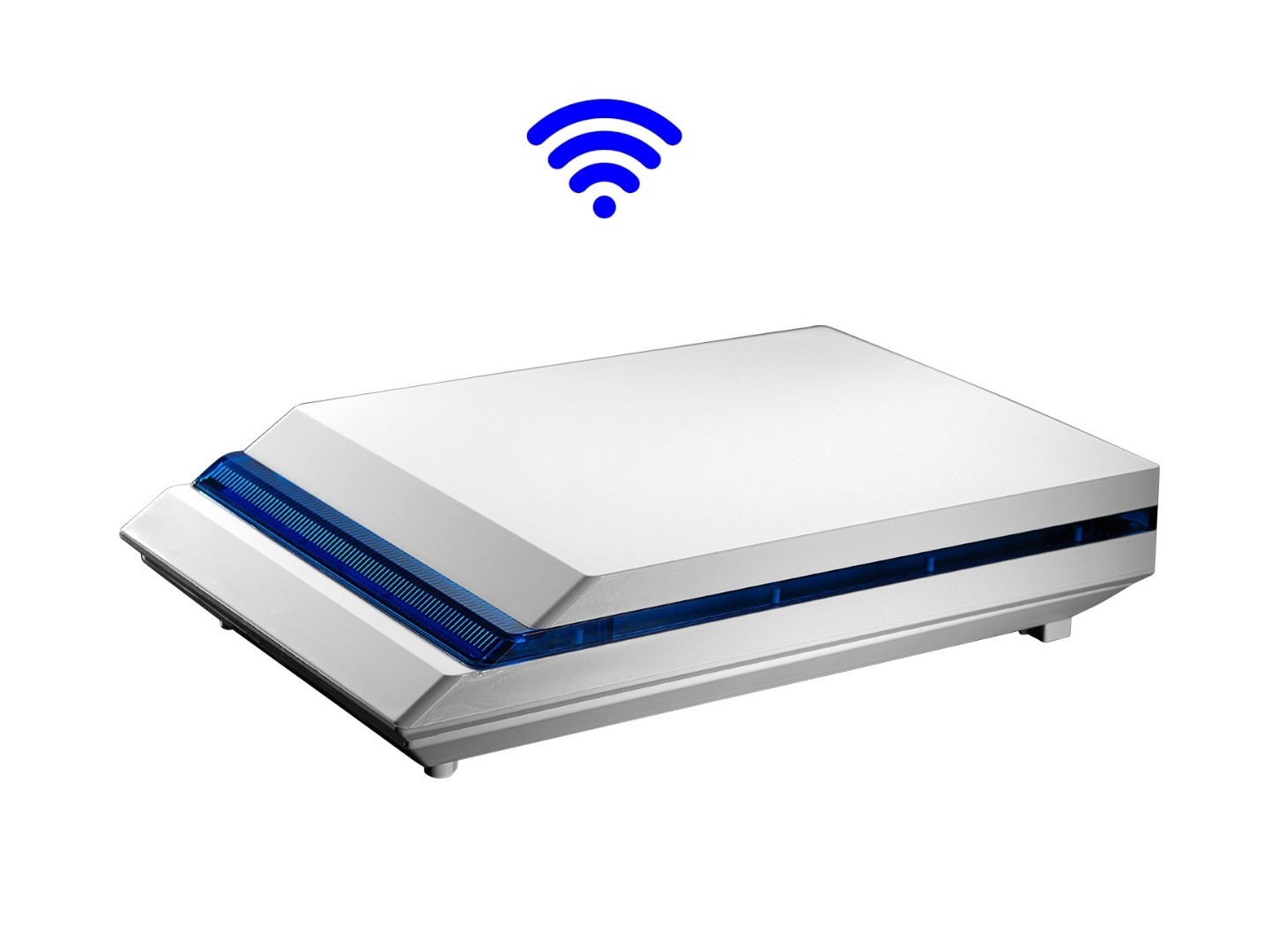

DIONE U/B - SIGMA - OUTDOOR SIREN

DIONE U/B

€170.00
(TAX excluded)

Autonomous siren GRADE 3 with LED Flash, blue color. Acoustic power 122dB at 1m.

Add to favorites



Security policy (edit with module Customer reassurance)



Delivery policy (edit with module Customer reassurance)



Return policy (edit with module Customer reassurance)

Wireless universal self-powered and self-protected siren with blue LED Flash.

Compatible with all alarm control panels on the market via the DIONE TRX wireless transceiver, which is supplied together with the siren.

Power supply: Lithium-thionyl chloride battery (Li-SOCl₂).

Battery type: ER 34615M / 3.6 V DC / 14,000 mAh (14 Ah).

Operating voltage: 2.8 – 3.6 V DC.

Standby current consumption: 8 mA.

Alarm current consumption: 600 mA including FLASH.

LED FLASH consumption: 100 mA max.

Low battery voltage output: When battery voltage is lower than 2.6 V under load (dynamic test) or 3.2 V at standby.

Operating frequency: 900 – 2700 Hz.

Acoustic output: 108 dB at 1 meter.

Maximum alarm duration: 3 minutes.

Tamper protection switch: On the cover and on the wall.

Tamper switch contact (NC-NO): 600 mA / 125 V DC.

Tamper alarm duration: 45 seconds.

Protection rating: IP44.

Siren and Flash enclosure material: Polycarbonate.

Weight (without battery): 1280 grams.

Dimensions: 190 × 290 × 65 mm (W × H × D).
