TXI-R

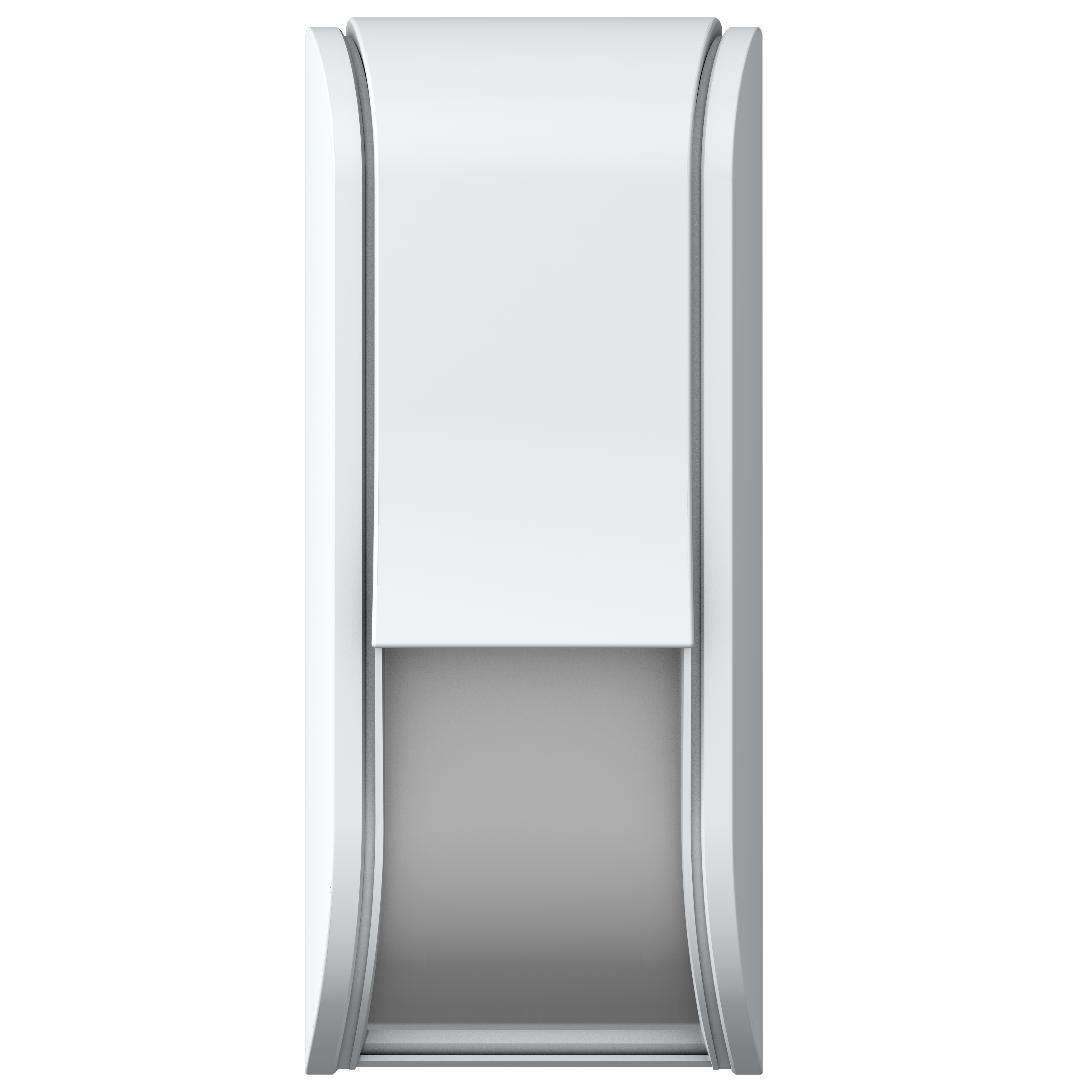

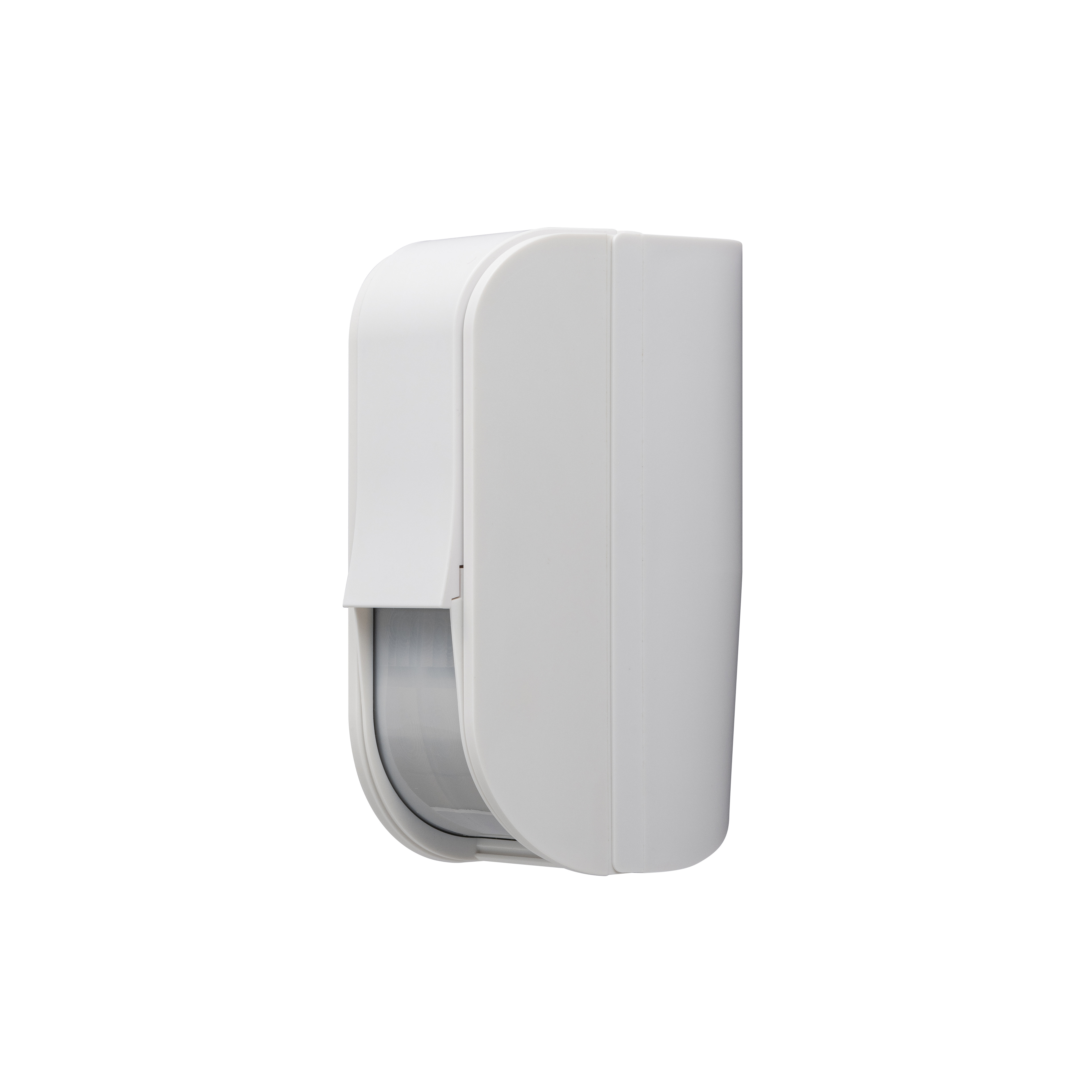

Advanced wireless outdoor passive curtain motion detector by OPTEX, designed for perimeter protection of buildings.
Security policy (edit with module Customer reassurance)
Delivery policy (edit with module Customer reassurance)
Return policy (edit with module Customer reassurance)
Advanced wireless outdoor passive curtain motion detector by OPTEX, designed for perimeter protection of buildings.
Detection range: 12 m × 2.4 m, with an optional look-down detection zone beneath the detector and adjustable detection distance.
Allows installation at greater heights (2.2–3.0 m / 3.0–4.0 m) than conventional sensors, combining high detection accuracy with small-animal immunity.
Utilizing Triple AND logic (Quad + Dual) together with advanced SMDA processing, it provides stable and consistent detection across the entire coverage area, significantly reducing false alarms, even under adverse weather conditions, moving vegetation, or in the presence of pets.
Operating voltage: 3 VDC
Powered by the transmitter battery.
Maximum current consumption (alarm condition): 5 mA @ 3 VDC
Battery life (CR123A):
- Up to 6.5 years @ 120-second transmission interval
- Up to 3.7 years @ 5-second transmission interval
Operating temperature: -30°C to +60°C
Protection rating: IP55
Dimensions: H 119.5 × W 54.2 × D 70.2 mm
The package includes an angle wall-mount bracket. For ceiling installation, the TXI-BKT mounting bracket is required and is supplied separately.
