2X-AT-F2
€1,960.00
(TAX excluded)

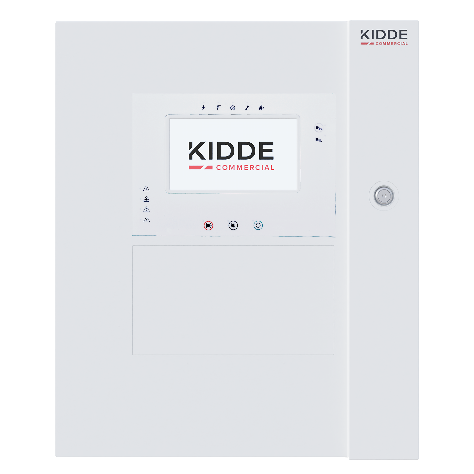

New addressable fire detection control panel with a 7’’ touchscreen by Kidde, featuring 2 loops with a maximum capacity of 128 devices per loop (detectors, call points, modules, or sounders), expandable to 4 loops with the addition of the 2X-A-LB card, and supporting up to 512 zones.
Security policy (edit with module Customer reassurance)
Delivery policy (edit with module Customer reassurance)
Return policy (edit with module Customer reassurance)
New addressable fire detection control panel with a 7’’ touchscreen by Kidde, featuring 2 loops with a maximum capacity of 128 devices per loop (detectors, call points, modules, or sounders), expandable to 4 loops with the addition of the 2X-A-LB card, and supporting up to 512 zones. It is easy to program and use and features a modern, elegant design housed in a metal cabinet. The panel includes an Ethernet port for remote control and programming, 3 USB ports, and 2 RS232 ports, and can optionally transmit signals to a NETREC OH receiver (requires the USB key 2010-2-PAK-RMOH) or communicate via the UltraSync cloud using the EN 54-21 UC240 UltraSync communicator. It also supports sending event emails to up to 4 recipients. The touchscreen allows customizable fire alarm zone maps with three levels of detail: building, floor, and zone. The system provides a 24V/500mA output with reset capability, along with 2 programmable outputs and 2 general-purpose relays per loop for alarm and fault. The maximum loop length is 2 km with a maximum line resistance of 56 ohms, using 2 x 1.5mm² twisted cable as recommended. Dimensions are 446 x 536 x 164 mm, panel color is White RAL 9003, and it accommodates 2 batteries up to 12V/18Ah. The 7’’ touchscreen includes a Greek language menu, the net weight without batteries is 7.4 kg, and the panel is compatible only with devices of the new EXCELLENCE series.
