2X-AF2-S-99
€1,500.00
(TAX excluded)
New addressable fire detection control panel by Kidde, featuring 2 loops with a maximum capacity of 128 devices per loop (detectors, call points, modules, or sounders) and supporting up to 512 zones.
Security policy (edit with module Customer reassurance)
Delivery policy (edit with module Customer reassurance)
Return policy (edit with module Customer reassurance)

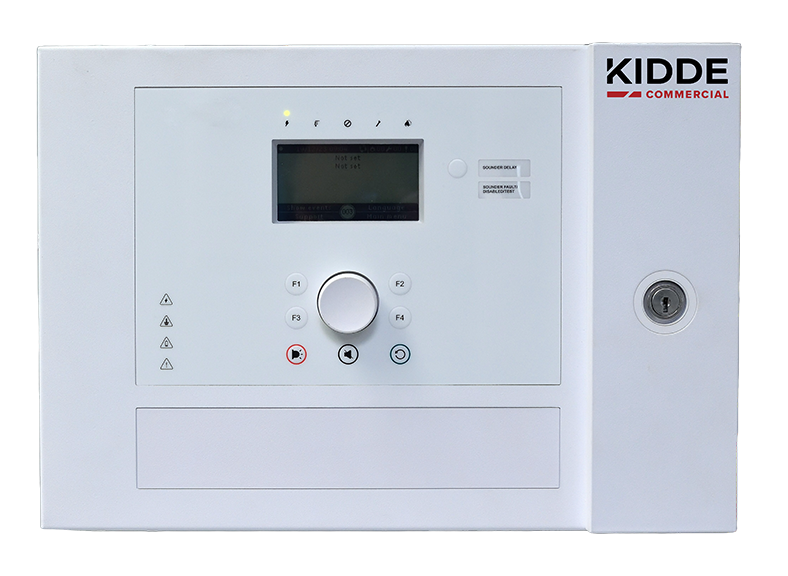

New addressable fire detection control panel by Kidde, featuring 2 loops with a maximum capacity of 128 devices per loop (detectors, call points, modules, or sounders) and supporting up to 512 zones. It is easy to program using functional buttons directly on the display and features a modern, elegant design housed in a metal cabinet. Optionally, a 24-zone LED front panel (2010-2A-ZI-24-S) can be mounted on the front of the unit for zone indication. The panel includes an Ethernet port for programming, 3 USB ports, and 2 RS232 ports, and it can optionally transmit signals to a NETREC OH receiver (requires the USB key 2010-2-PAK-RMOH) or via the UltraSync cloud using the EN 54-21 UC240 UltraSync communicator. It also supports sending event emails to up to 4 recipients. The system provides a 24V/500mA output with reset capability, along with 2 programmable outputs and 2 general-purpose relays for alarm and fault. The maximum loop length is 2 km with a maximum line resistance of 56 ohms, using 2 x 1.5mm² twisted cable as recommended. Dimensions are 409 x 285 x 154 mm, panel color is White RAL 9003, and it accommodates 2 batteries of 12V/7Ah. The LCD display includes a Greek language menu, the net weight without batteries is 6.6 kg, and the panel is compatible only with devices of the new EXCELLENCE series.
