2X-AF1-99 DATASHEET
TECH SUPPORT
(+30) 210-664-0025
2X-AF1-99
€1,100.00
(TAX excluded)

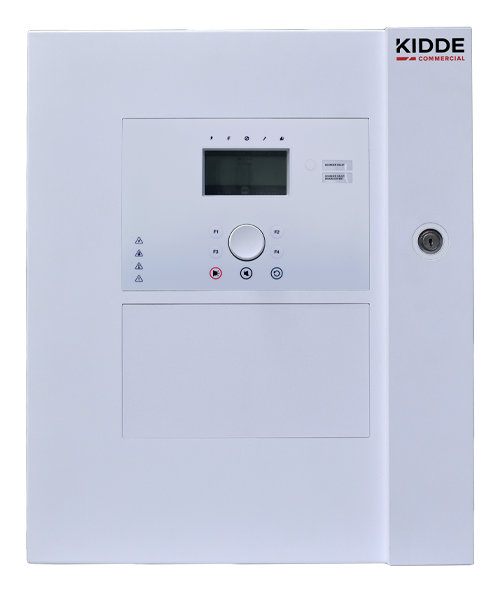

New addressable fire detection control panel (in a large enclosure) by Kidde, featuring 1 loop with a maximum capacity of 128 devices per loop (detectors, call points, modules, or sounders).
Security policy (edit with module Customer reassurance)
Delivery policy (edit with module Customer reassurance)
Return policy (edit with module Customer reassurance)
New addressable fire detection control panel (in a large enclosure) by Kidde, featuring 1 loop with a maximum capacity of 128 devices per loop (detectors, call points, modules, or sounders). The panel supports up to 512 zones and is easy to program via functional buttons directly on the display. It features a modern, elegant design with a metal cabinet construction. Optionally, it can be equipped with a 20-zone LED front panel (2010-2A-ZI-24-20) or a 40-zone LED front panel (2010-2A-ZI-24-40), both of which are mounted on the front of the unit. The panel includes an Ethernet port for programming, as well as 3 USB ports and 2 RS232 ports. It optionally supports signal transmission to a NETREC OH receiver (requires the USB key 2010-2-PAK-RMOH) and signal transmission via the UltraSync cloud, using the EN 54-21 UC240 UltraSync communicator. It also supports email notifications of events to up to 4 recipients. The panel provides a 24V/500mA output with reset capability, along with 2 programmable outputs and 2 general-purpose relays (alarm and fault). The maximum loop length is 2 km, with a maximum line resistance of 56 ohms, using 2 x 1.5mm² twisted pair cable as recommended. Dimensions: 446 x 536 x 164 mm. Panel color: White RAL 9003. It accommodates 2 batteries up to 12V/18Ah. The LCD display includes a Greek language menu. Net weight (without batteries): 7.4 kg. Compatible only with devices of the new EXCELLENCE series.
